KITACO I-MAP (Injection Controller) Ape 50/Ape 50 Type D 763-1138000

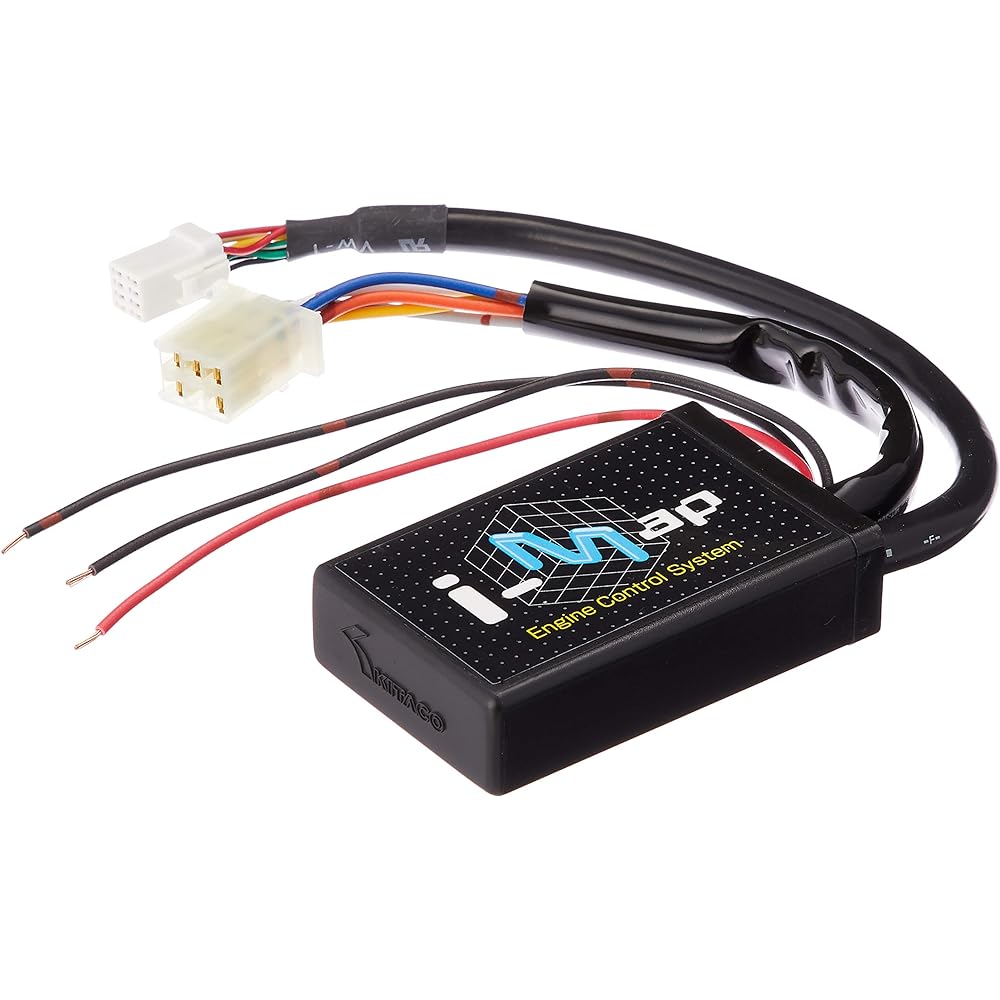

Compatible models Ape 50 (FI car): FNO, AC16-1600001~ | Ape 50-Type D (FI car): All AC18 models This is an FI controller that corrects the fuel injection amount. We have installed several optimal maps that correspond to the combination of our parts, and after installing I-MAP, the user selects the map in the switch settings. (The number of maps varies depending on the vehicle model.) It is also possible to create user-original maps to accommodate parts not manufactured by our company or to accommodate user preferences.

For adjusting F1 (fuel injection) during tuning. Equipped with several pre-installed maps optimized for combination with Kitaco tuning parts. It is also equipped with user-defined map channels, allowing a wide range of injection settings. The fuel injection map enables precise engine control with a 3D map of rotation speed, throttle opening, and fuel injection amount. Channel switching is done using the DIP switch on the main unit. Setting an arbitrary map requires a PC interface cable (sold separately). We have confirmed operation on the following OS. Windows2000/SP4/32-bit regular version WindowsXP/SP1-3/32-bit regular version WindowsVista/SP1/32-bit regular version Windows7HomePremium/Professional/64-bit regular version Multiple optimal maps that correspond to the combination of Kitako parts have been installed. , after the user installs the I-MAP, selects the map in the switch settings. The number of maps varies depending on the vehicle type. It is also possible to create original maps for users using parts other than those made by KITACO. *To create an original map, a separate PC interface cable (763-0500900) and a computer with Windows are required. Precautions for use Wiring processing is required for installation.


Manufacturer: KITACO
Brand: KITACO
Model name: 763-1138000
Package size: 17.1 x 9.8 x 4.9 cm; 199.58 g
Product model number: ‎763-1138000
Product weight: ‎200 g
