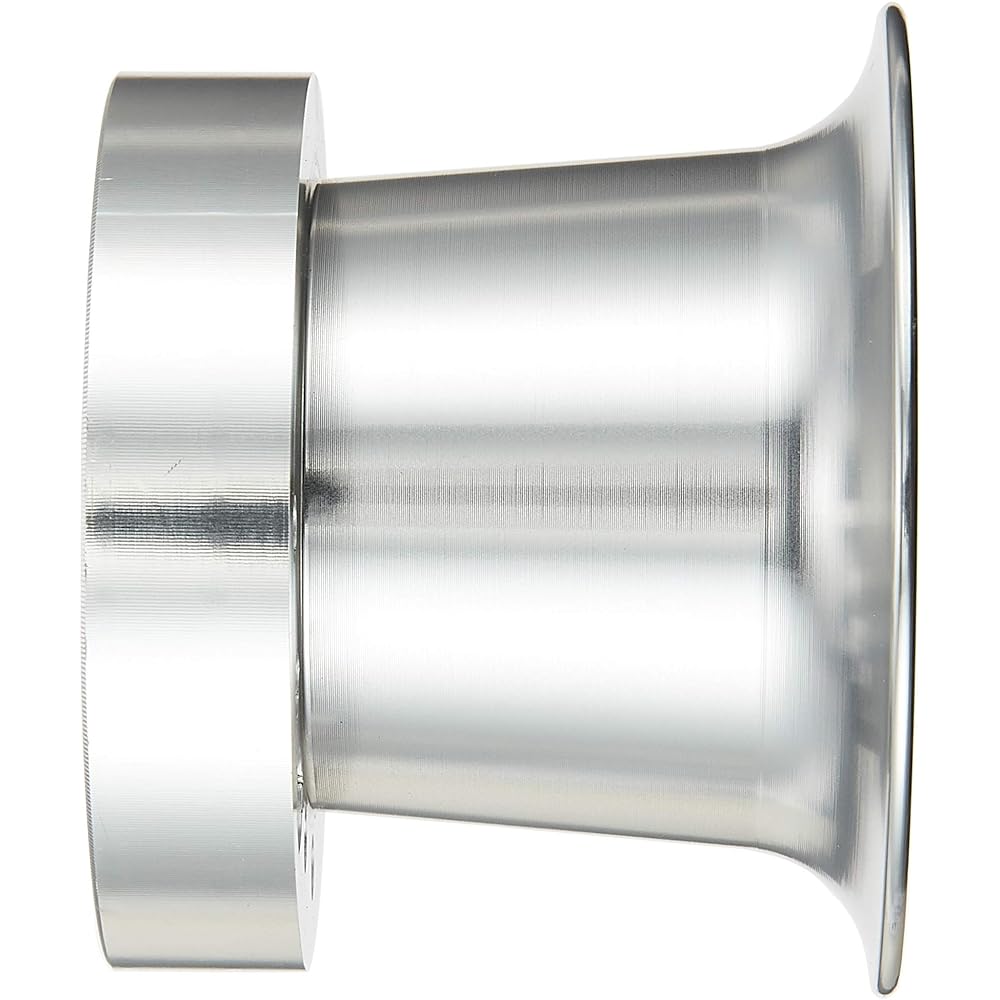

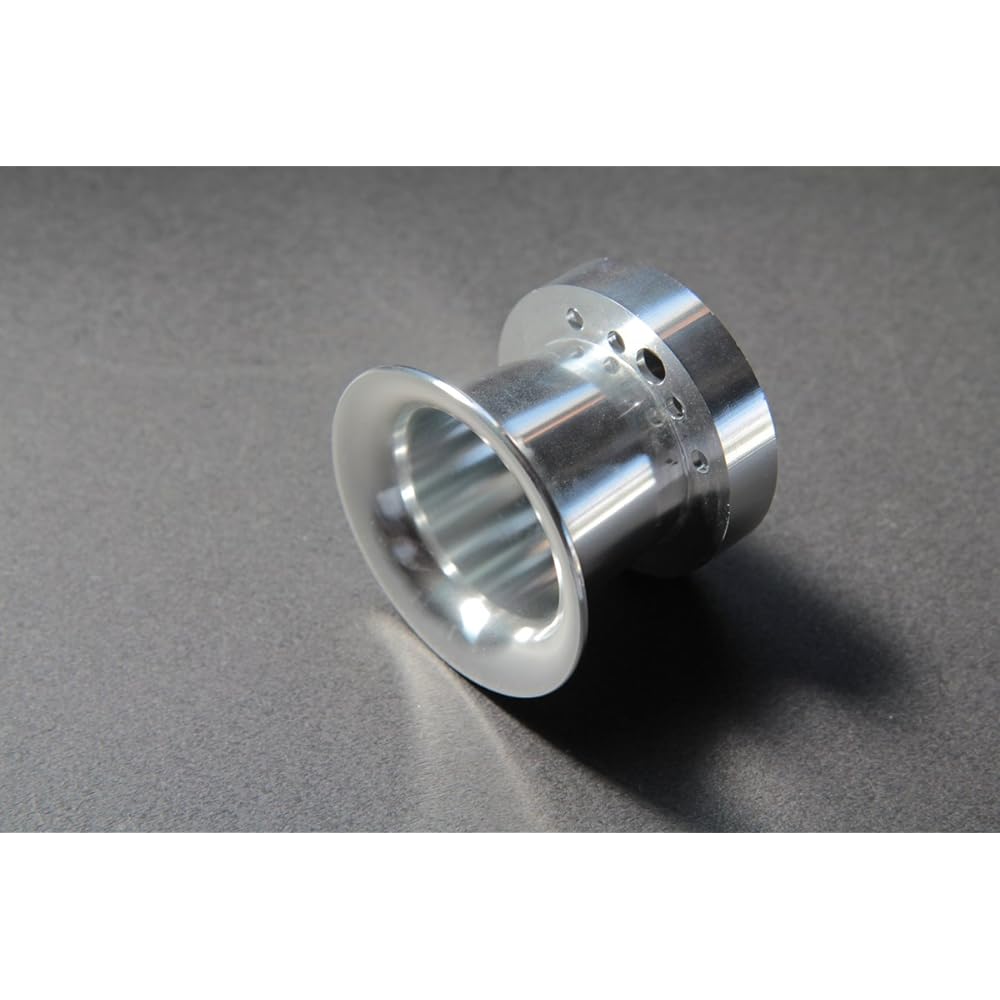

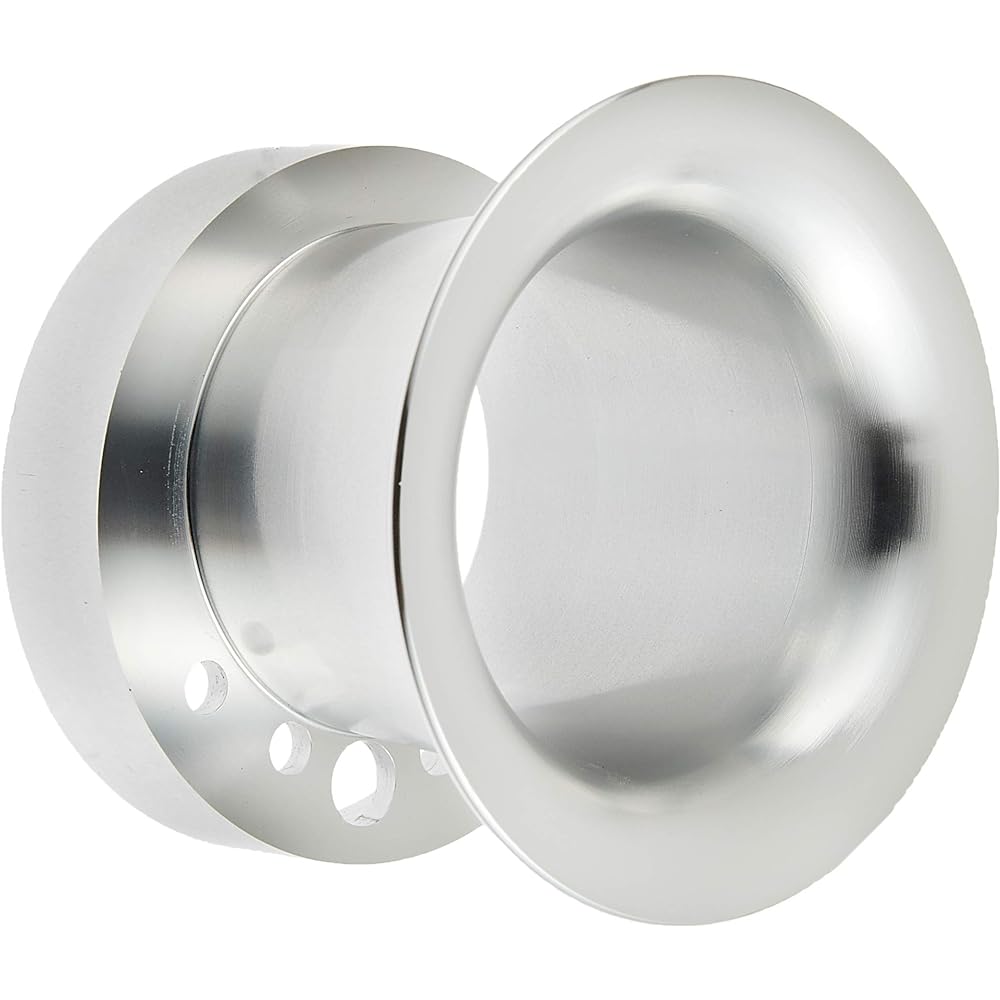

[193] Short aluminum funnel for CR carburetor Silver CAB-STFNL01-1 CAB-STFNL01-1

Dimensions: Total length 47mm, Cab side inner diameter 50mm, Tip trumpet diameter 60mm. Set contents: 1 billet funnel, 1 set screw for installation. Compatible with genuine products: Zephyr 400, Zephyr χ, ZRX400, GS400, etc.

Aluminum funnel attached to CR cab. It is a short type with a total length of 47mm. Funnels for FCR are relatively inexpensive and are available without much difficulty, but funnels for CR are expensive and in small quantities, so I made them from machined aluminum. Please take advantage of this opportunity. It can also be installed on genuine carbs with a diameter of 50 such as CVK30 and BS34. Unlike regular general-purpose funnels, CR funnels have narrower waists, so the speed of the air that flies into the carb becomes faster, and you can expect a power-up effect. This is the orthodox silver type. Ideal for owners who want to maintain the atmosphere of the past. Also, since it is a short type, it is perfect for vehicles with narrow gaps between the frame and the frame. Compatible with Keihin CR cab small body (26 to 33 pi). Precautions for use: If the installation is difficult, please tap it little by little with a plastic hammer etc. It's even better if you lightly paper the cab side or the inside of the funnel. - The chamfering of the holes may be slightly insufficient. -Although it is new, there may be some small scratches left during manufacturing.


Manufacturer: ‎CHERRY
Brand: ‎Cherry Bomb
Model name: ‎CAB-STFNL01-1
Product size: ‎9.6 x 8.51 x 6.5 cm; 44 g< br>Product model number: ‎CAB-STFNL01-1
Product dimensions: Depth x Width x Height: 9.6 x 8.5 x 6.5 cm
Product weight: 44 g
