Auto Parts Tokyo

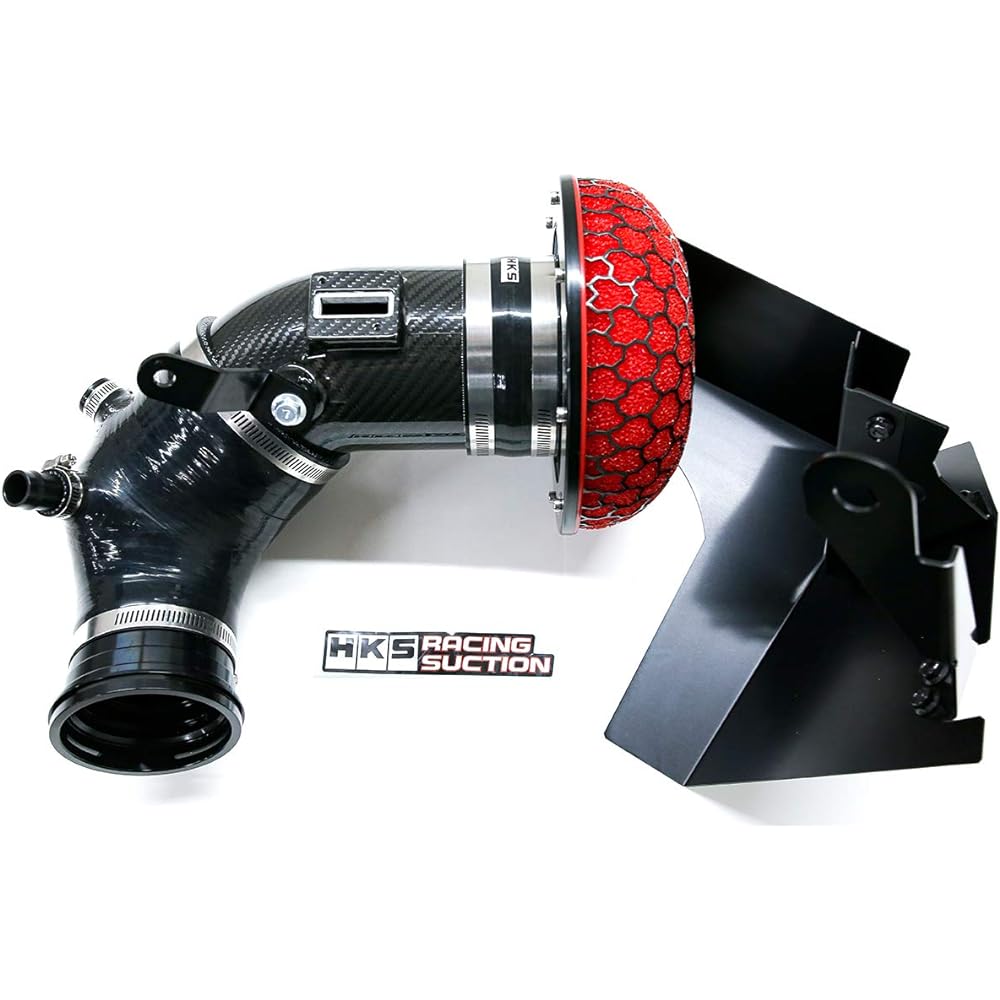

HKS Dry Carbon Racing Suction (Air Cleaner) GR Supra 3BA- DB42 B58 19/06-70028-AT001
HKS Dry Carbon Racing Suction (Air Cleaner) GR Supra 3BA- DB42 B58 19/06-70028-AT001
Regular price
$1,017.00 USD
Regular price
Sale price
$1,017.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
[Compatibility] For Toyota GR Supra RZ Model: 3BA-DB42 /DB2 Engine: B58 Year: 19/06- *Please check the manufacturer's website for the latest compatibility information [Specifications] DRY CARBON RACING SUCTION Body size: Φ200-100 Filter: Red (wet 2-layer) This is an intake system that includes the exposed type air cleaner "Super Power Flow" and a luxurious CFRP intake pipe. The CFRP intake pipe uses 3K twill prepreg. Suction resistance is reduced by changing the genuine flexible rubber hose to a racing suction. In addition, by converting conventional aluminum pipes to CFRP, we achieved a weight reduction of approximately 35%. Furthermore, it is possible to reduce the rise in temperature of the pipe itself and the stagnation temperature, thereby suppressing power loss due to rise in intake air temperature.We have confirmed various data and feedback conditions during installation, and can be handled with a genuine ECU.

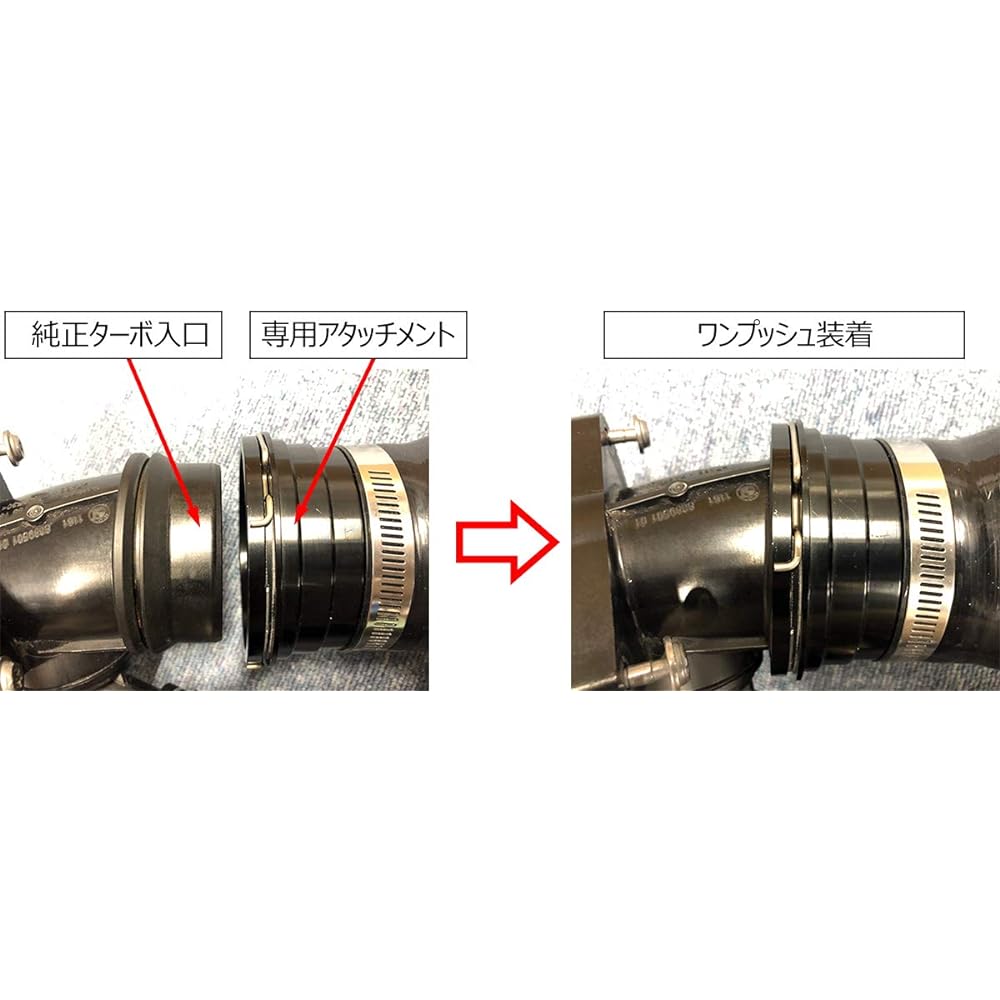

[Features] The CFRP intake pipe uses 3K twill prepreg to create a lacy and luxurious feel. Suction resistance is reduced by changing the genuine flexible rubber hose to a racing suction. In addition, by converting conventional aluminum pipes to CFRP, we achieved a weight reduction of approximately 35%. Furthermore, it is possible to reduce the rise in temperature of the pipe itself and the stagnation temperature, thereby suppressing power loss due to rise in intake air temperature. The power flow body and intake pipe connection part are φ100 to emphasize its presence. You can enjoy a lacy intake sound that is as good as its appearance. The back turbine sound rises sharply when the accelerator is off, allowing you to enjoy the crisp sound. The connection to the turbine inlet uses an attachment shape similar to the original model. One-push installation is now possible with the system assembly. We have checked various data and feedback status during installation, and it is possible to use the genuine ECU. In the flow bench test, the intake air volume increased by approximately 13% when the ventilation resistance value was 7kPa.In vehicles equipped with HKS Dry Carbon Racing Suction/Super Turbo Muffler/Mastery ECU, the synergistic effect of each part resulted in an approximately 60PS increase over the full normal version. Manufacturer test value. The values are measured using our chassis dynamo on our vehicles, so they may differ depending on weather conditions, individual vehicle differences, measuring equipment, etc.
Manufacturer: HKS
Brand: HKS
Model Name: Dry Carbon Racing Suction
Product Size: 43.18 x 32.51 x 28.96 cm; 3.42 kg
Product Model Number: 70028-AT001
Product Dimensions Depth x Width x Height: 43.2 x 32.5 x 29 cm
Certification: None
Product Weight: 3.42 Kilograms
[Features] The CFRP intake pipe uses 3K twill prepreg to create a lacy and luxurious feel. Suction resistance is reduced by changing the genuine flexible rubber hose to a racing suction. In addition, by converting conventional aluminum pipes to CFRP, we achieved a weight reduction of approximately 35%. Furthermore, it is possible to reduce the rise in temperature of the pipe itself and the stagnation temperature, thereby suppressing power loss due to rise in intake air temperature. The power flow body and intake pipe connection part are φ100 to emphasize its presence. You can enjoy a lacy intake sound that is as good as its appearance. The back turbine sound rises sharply when the accelerator is off, allowing you to enjoy the crisp sound. The connection to the turbine inlet uses an attachment shape similar to the original model. One-push installation is now possible with the system assembly. We have checked various data and feedback status during installation, and it is possible to use the genuine ECU. In the flow bench test, the intake air volume increased by approximately 13% when the ventilation resistance value was 7kPa.In vehicles equipped with HKS Dry Carbon Racing Suction/Super Turbo Muffler/Mastery ECU, the synergistic effect of each part resulted in an approximately 60PS increase over the full normal version. Manufacturer test value. The values are measured using our chassis dynamo on our vehicles, so they may differ depending on weather conditions, individual vehicle differences, measuring equipment, etc.
Manufacturer: HKS
Brand: HKS
Model Name: Dry Carbon Racing Suction
Product Size: 43.18 x 32.51 x 28.96 cm; 3.42 kg
Product Model Number: 70028-AT001
Product Dimensions Depth x Width x Height: 43.2 x 32.5 x 29 cm
Certification: None
Product Weight: 3.42 Kilograms
