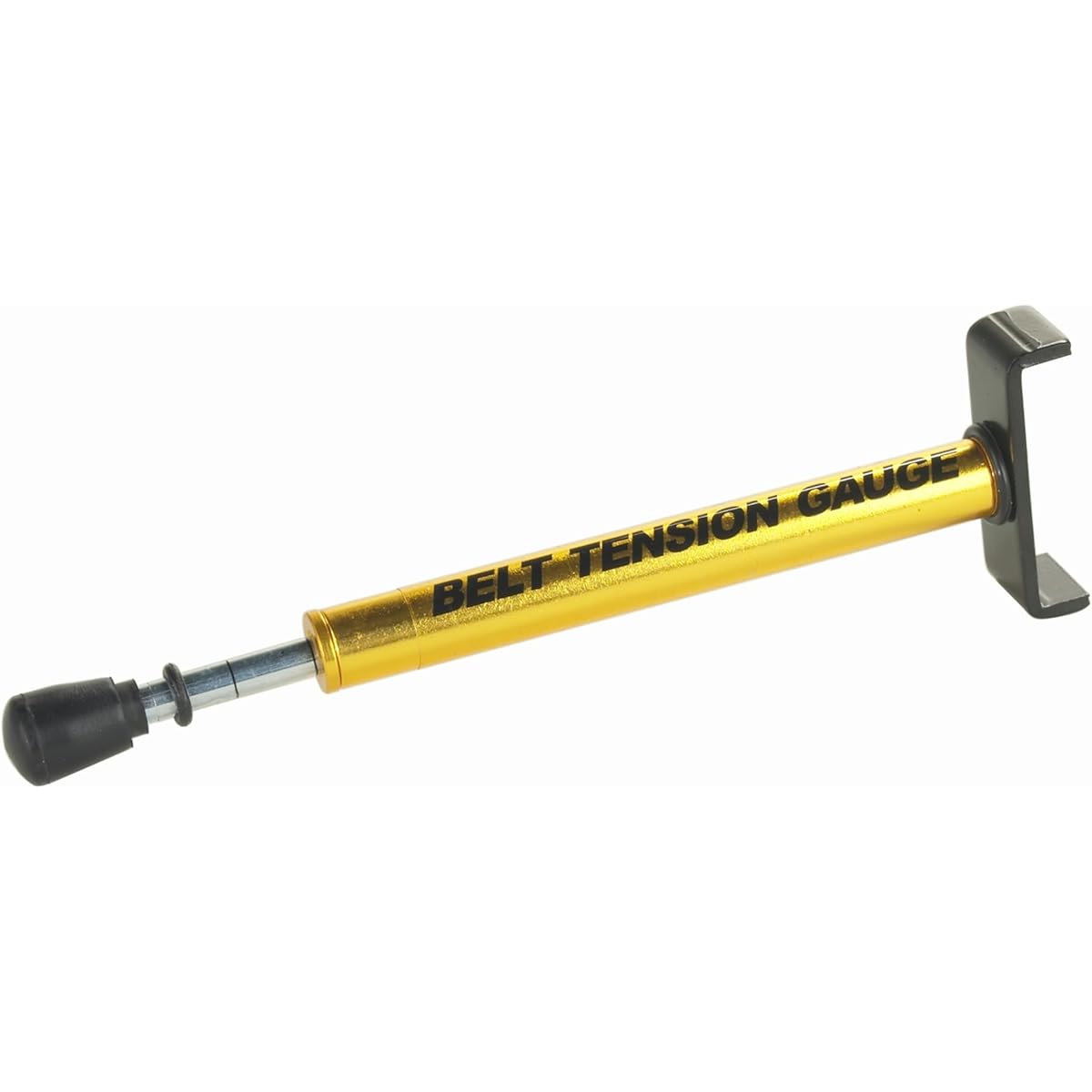

OTC 4748 Belt tension gauge

Easy to use and read. Tools allow you to set belt tension for precise creation. Please use after belt replacement adjustment or tire service. Use with 10-pound secondary drive belts. -

This tool is easy to use and allows you to accurately set belt tension. Please use after belt replacement adjustment or tire service. Use with 10-pound secondary drive belts. specification. Instructions x1. Place the small O-ring above the 10 pound mark. -2. Place the U-shaped belt cradle at 90 degrees to the bottom of the belt, and align the large O-shaped ring with the reference point and record reading location. 3. Push the rubber bumper upward until the small O-ring touches the bottom of the tool body. Adjust the large O-ring again to the reference point, and the difference from the measured value will be the belt deflection. (Please refer to the instruction manual (may not be in Japanese) for specifications)


Manufacturer: OTC
Brand: OTC
Model name: 4748
Product size: ‎19.81 x 7.37 x 2.16 cm; 1 g
Product model number: ‎4748
Discontinued by manufacturer: ‎No
Original product number: ‎4748
Product dimensions Depth x width x height: ‎19.8 x 7.4 x 2.2 cm
Guarantee: ‎Não aplicável
Product weight: ‎1 g
