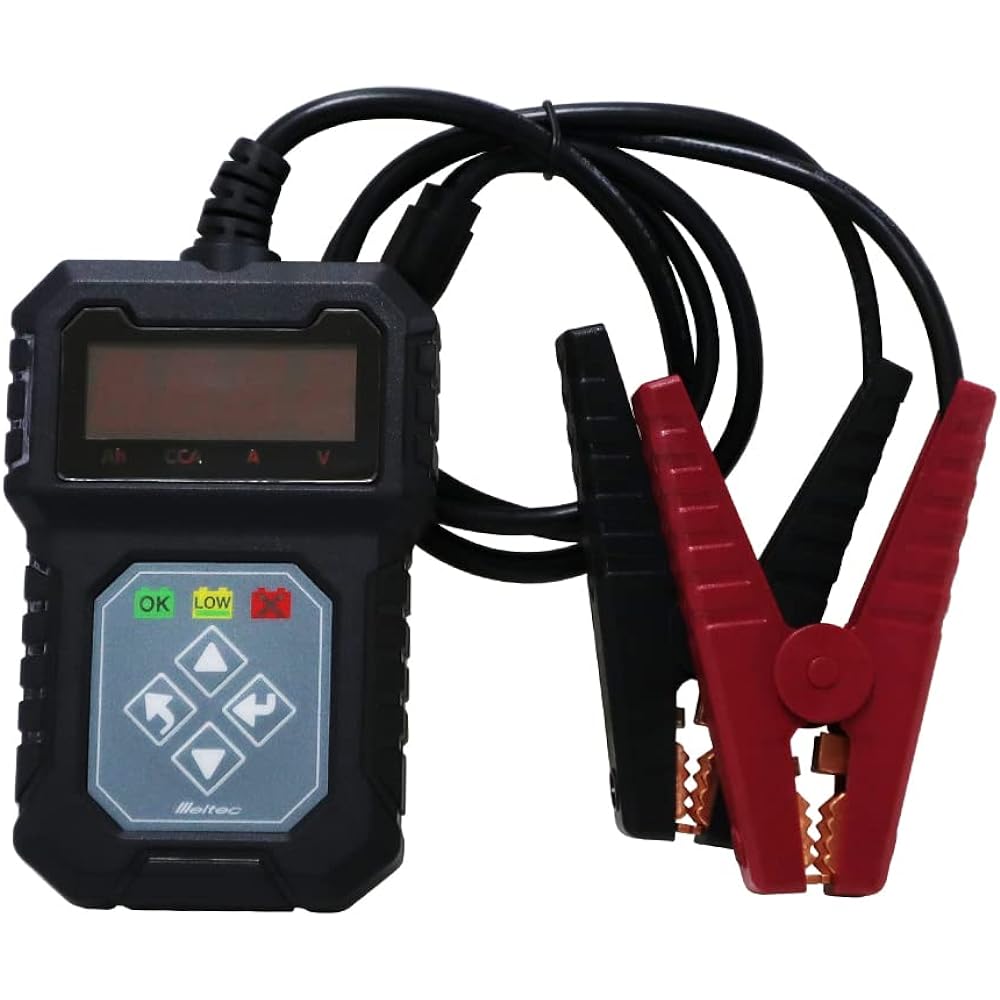

Meltech Daiji Kogyo Battery Diagnostic Machine (LED Digital Display) DC12V Diagnosis Contents: CCA value, CA value, MCA value Battery deterioration, power generation status & starting ability detection [ML-102]

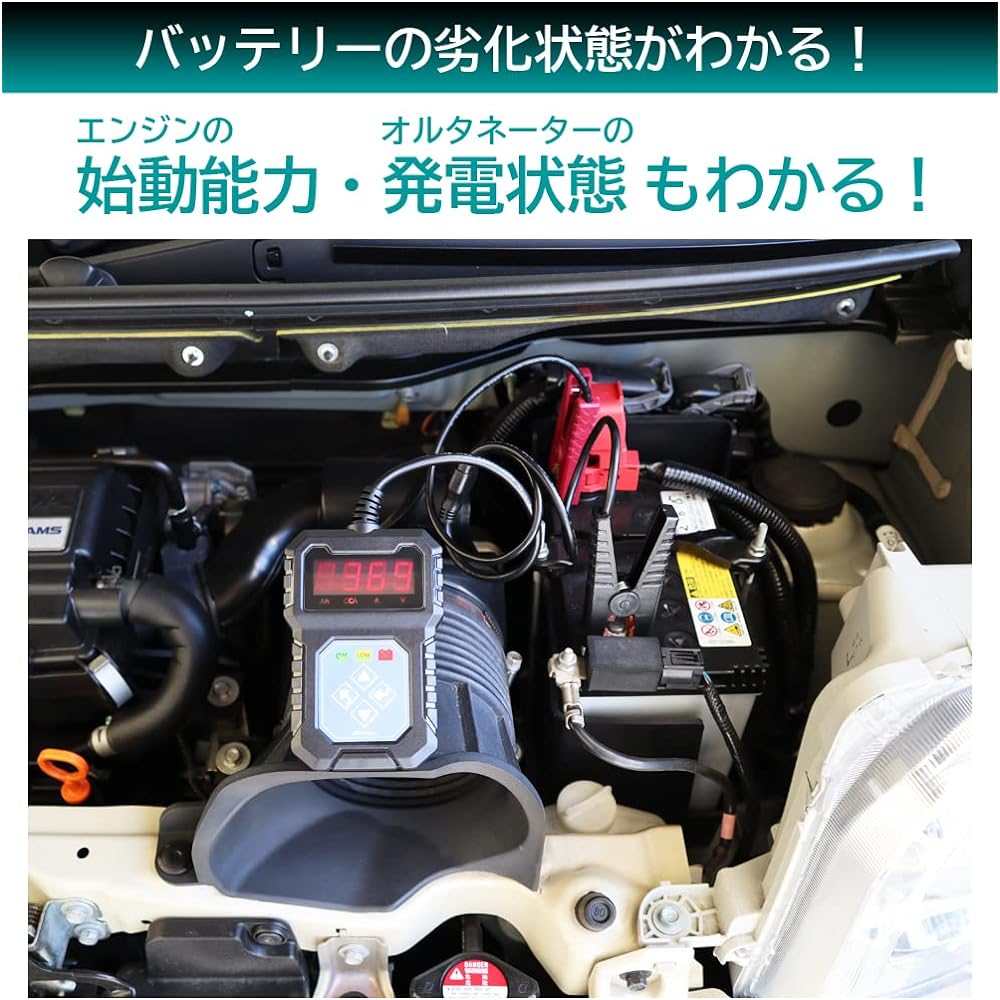

You can check the battery deterioration status, engine starting ability, and alternator power generation status. Measurement voltage range: 9V to 15V ・Usable range: [JIS] 26A17 to 245H52/[CCA] 100 to 2000 ・Display: LED (good, OK to remeasure, LOW battery replacement, ×) Digital display ・Length of power cord Size: Approximately 90cm Compatible batteries: [DC12V] Domestic automobile 12V battery, open lead battery (battery that can be refilled), sealed lead battery (shielded, maintenance free), Compatible battery: [DC12V] Idling stop Car battery, auxiliary battery for hybrid vehicles, 12V battery for ships (MCA judgment), AGM, dry battery Body size/weight: Approx. 78(W) x 121(H) x 21(D)mm/Approx. 230g Package size: Approximately 230 (W) x 165 (H) x 50 (D) mm ・Warranty period: 1 year from the date of purchase

●You can see the deterioration status of the battery, engine starting ability, and alternator power generation status. ●Measurement of cold cranking ampere (CCA value) ●Measurement of cranking ampere (CA value) ●Measurement of marine cranking ampere (MAC value) Safety Warning [Safety Warning] *Please read this instruction manual carefully before use. Please read this carefully and use it correctly. *The following indicates information that may result in death or serious injury if ignored and handled incorrectly. *Please use in a well-stimulated place. There is a risk that hydrogen gas, etc. that has accumulated around the battery may ignite or explode due to a spark when connecting the battery clip. *Please make sure that the handbrake is firmly applied. The car may move during measurement, causing an accident, electric shock, fire, or malfunction or damage to this product or car. *Please use and store out of reach of small children. Doing so may cause an accident, injury, or electric shock. *Do not use this product near flammable materials such as gasoline or oil, or in locations designated by law as Class 1 or Class 2 hazardous locations. Doing so may cause a fire, ignition, or explosion. *Please do not drive your car while this product is connected. Doing so may cause accidents, electric shock, fire, or damage to this product or automobile. *Do not get it wet. Doing so may cause fire or electric shock. *Do not leave the product in direct sunlight or high temperatures, or in a car under the scorching sun. Doing so may cause fire, electric shock, malfunction, etc. *Please do not disassemble or modify. Doing so may cause fire, electric shock, or accidents. *Do not remove the battery clip during diagnosis. There is a risk that hydrogen gas, etc. that has accumulated around the battery will catch fire or explode due to a spark when the battery clip comes off. *For 12V lead battery only. Do not use other batteries (24V, etc.). [Usage Precautions] *Indicates the content that may result in injury to persons or property damage if ignored and handled incorrectly. *Please be careful not to let the battery fluid get into your eyes or get on your skin or clothing. Doing so may cause blindness or injury. If it comes into contact with your eyes, immediately rinse thoroughly with water and seek medical attention. *Be careful not to get your fingers caught in the battery clip. Doing so may cause injury. *Please remove metal accessories such as rings, bracelets, necklaces, and watches. A short circuit or a short circuit may cause injury. *Please be careful not to allow the cables inside this t to touch hot parts of the engine such as the exhaust section. Doing so may cause an accident, malfunction or damage to this product or vehicle. *Please carefully check the positive and negative terminals of the battery and connect them correctly. Reverse connection may cause this product to malfunction. *When diagnosing a car's battery, stop the engine and turn off electrical equipment such as lights. Doing so may cause injury or damage to the product. *Please remove this product from the vehicle after using it. Doing so may drain the vehicle battery and cause a fire. *It will not work properly if the voltage of the battery to be diagnosed is less than 9V. *Do not allow engine oil, gasoline, antifreeze, or battery fluid to adhere to the main unit. This may cause deterioration of the surface of the main unit. *Be sure to clean the battery clip and battery terminals before use. This may cause malfunction. *For safe use, we recommend wearing safety glasses and protective clothing. *Do not pull the cable forcefully. If you pull the cable forcibly when removing the battery clip, it may cause breakage or other malfunctions.


Manufacturer: Meltec
Brand: Meltec
Model name: ML-102
Package size: 23.2 x 16.8 x 5.2 cm; 230 g
Product Model Number: ML-102
Color: Black, Red, Red
Certification: 1 year from time of purchase
Product Weight: 230 g
