Auto Parts Tokyo

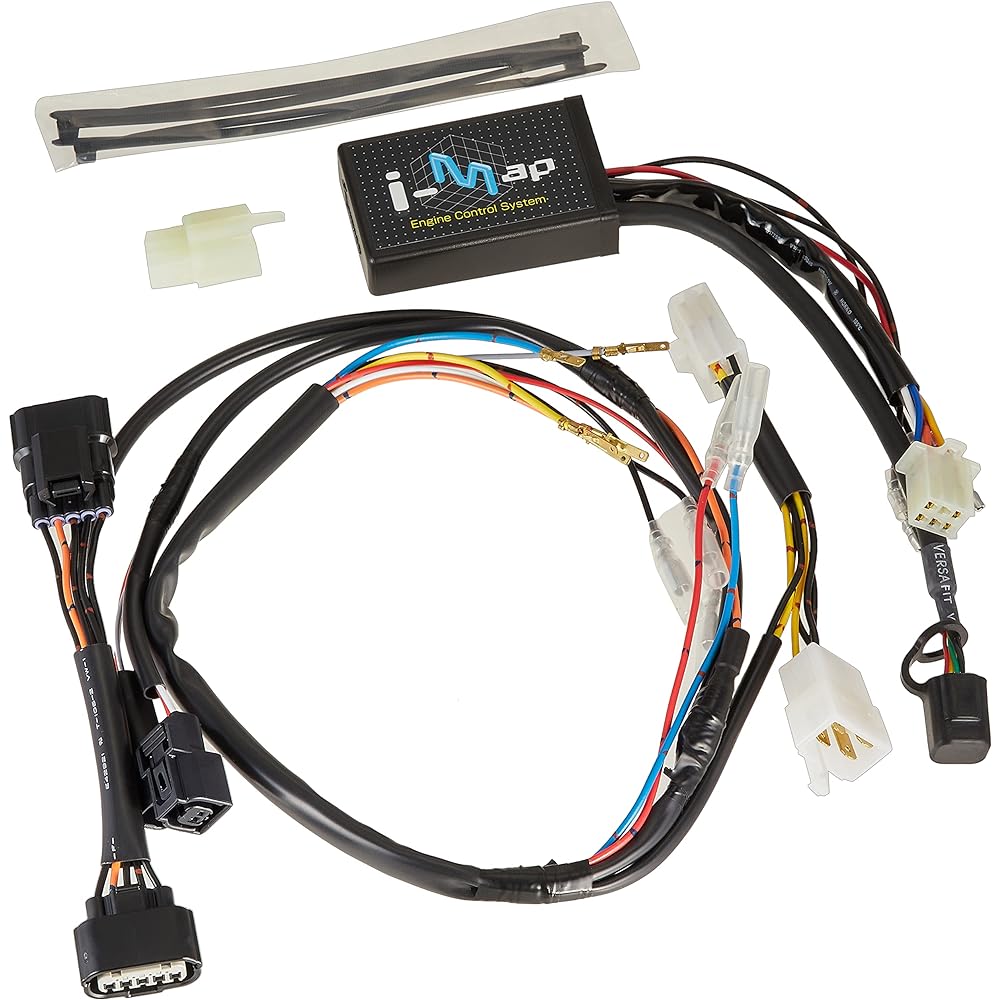

KITACO i-map coupler on set Little Cub (FI), Super Cub 50 (FI), Press Cub 50 (FI) 763-1136100
KITACO i-map coupler on set Little Cub (FI), Super Cub 50 (FI), Press Cub 50 (FI) 763-1136100
Regular price
$161.00 USD
Regular price
Sale price
$161.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Compatible models Little Cub (FI car): FNO, AA01-4000001~ No wiring required *Power Inspire is required separately to fully demonstrate the performance of I-MAP This is an FI controller that corrects the fuel injection amount Parts made by Kitaco Multiple optimal maps that correspond to the combination have been installed, and after installing I-MAP, the user selects the map by setting the switch.In order to accommodate the installation of non-KITACO parts and the user's preferences, we have created a user-original map. You can also create maps
Product introduction: Assembly of i-map (injection controller) eliminates the need for wiring due to the dedicated coupler on harness. After installing the i-map, select the map with the DIP switch. In addition, it is also possible to create user-original maps so that parts other than Kitaco parts can be installed and user preferences can be accommodated. MAP-1 Vehicle equipped with JMCA compatible muffler MAP-2 Vehicle equipped with JMCA compatible muffler + Power Pack 50 MAP-3 Vehicle equipped with JMCA compatible muffler + Power Pack 50 + Air Funnel MAP-4 Vehicle equipped with JMCA compatible muffler + LIGHT Bore Up Kit 88cc + Normal air cleaner MAP-5 JMCA compatible muffler equipped vehicle + LIGHT bore up kit 88cc + air funnel MAP-6 User setting map (see the notes section below) Rev limit: MAP-1 10,500rpm/MAP-2 11,000rpm/MAP-3 11,500rpm/ MAP-4 10,500rpm/MAP-5 11,500rpm Precautions for use To create an original map, you will need a computer with an internet connection and a PC interface cable (product number: 763-0500900). Download the configuration software from the Kitaco website and configure it on your computer. For 4-speed cars with cells, Power Inspire (product number: 765-1136700) is required separately to take full advantage of i-map performance.
Manufacturer: KITACO
Brand: KITACO
Model name: 763-1136100
Package size: 25.2 x 15.2 x 3 cm; 290 g
Product model number: 763-1136100
Product weight: 290 g
Product introduction: Assembly of i-map (injection controller) eliminates the need for wiring due to the dedicated coupler on harness. After installing the i-map, select the map with the DIP switch. In addition, it is also possible to create user-original maps so that parts other than Kitaco parts can be installed and user preferences can be accommodated. MAP-1 Vehicle equipped with JMCA compatible muffler MAP-2 Vehicle equipped with JMCA compatible muffler + Power Pack 50 MAP-3 Vehicle equipped with JMCA compatible muffler + Power Pack 50 + Air Funnel MAP-4 Vehicle equipped with JMCA compatible muffler + LIGHT Bore Up Kit 88cc + Normal air cleaner MAP-5 JMCA compatible muffler equipped vehicle + LIGHT bore up kit 88cc + air funnel MAP-6 User setting map (see the notes section below) Rev limit: MAP-1 10,500rpm/MAP-2 11,000rpm/MAP-3 11,500rpm/ MAP-4 10,500rpm/MAP-5 11,500rpm Precautions for use To create an original map, you will need a computer with an internet connection and a PC interface cable (product number: 763-0500900). Download the configuration software from the Kitaco website and configure it on your computer. For 4-speed cars with cells, Power Inspire (product number: 765-1136700) is required separately to take full advantage of i-map performance.
Manufacturer: KITACO
Brand: KITACO
Model name: 763-1136100
Package size: 25.2 x 15.2 x 3 cm; 290 g
Product model number: 763-1136100
Product weight: 290 g
