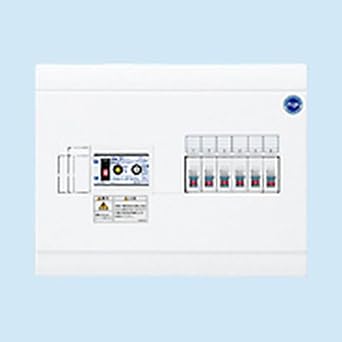

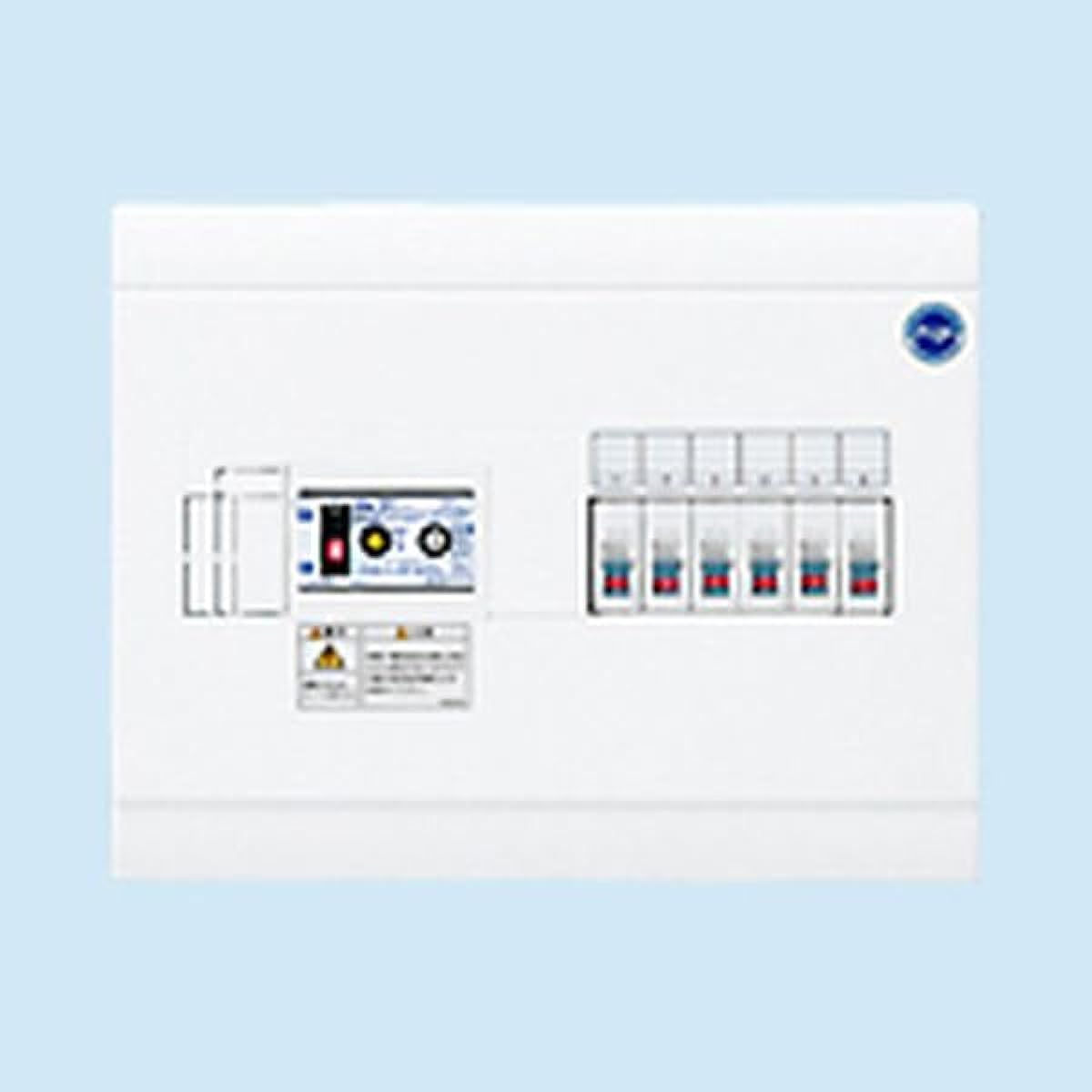

Nitto Kogyo (NiTO) HSB type home distribution board, no door, horizontal single row (single phase 2 wire) 4+2 30A HSB2L-42

*The published image is a representative image of the product series. Different from the actual product. ●Quantity (units): 1
●Color: White
●Single row type
●Door: None
●Single-phase 2-wire type
●Main 30AF (JIS compatible type)
●Earth leakage breaker with earth leakage breaker and OC
●Main type: With earth leakage breaker OC (30mA within 0.1 seconds)
●Main stem: GP31S2P30AF30(1E)
●Branch type: Petit slim ( Breaker)
●Branch: PN31TA2P20AL1

●Quantity (units): 1 ●Color: White ●Horizontal single row type ●Door: None ●Single-phase 2-wire type ●Main trunk 30AF (JIS compatible type) With breaker OC (30mA within 0.1 seconds) ● Main trunk: GP31S2P30AF30 (1E) ● Branch type: Petit slim (breaker) ● Branch: PN31TA2P20AL1 ● Number of branch circuits + spare space: 4 + 2 ● Main trunk capacity: 30A (30AF) ● Branch Number of circuits: 100V (2P1E20A/2P2E20A): 4/0 ● Number of branch circuits: 200V (2P2E20A/2P2E30A/2P2E20A (ELB)): 0/0/0 ● Quick connection earth terminal: 5 connections ● Panel rating: 30A (100V only) ●Mass (kg): 1.8●Dimensions (mm): 320●Vertical dimension 250mm, exposure only type.


Manufacturer: ‎Nitto Kogyo (NiTO)
Part number: ‎HSB2L-42
Product weight: 1.8 Kilograms
Package size: ‎39 x 32.29 x 11.2 cm ; 1.8 kg
Pattern: ‎HSB2L-42
Ampere capacity: ‎30 amps
Battery usage: ‎No
