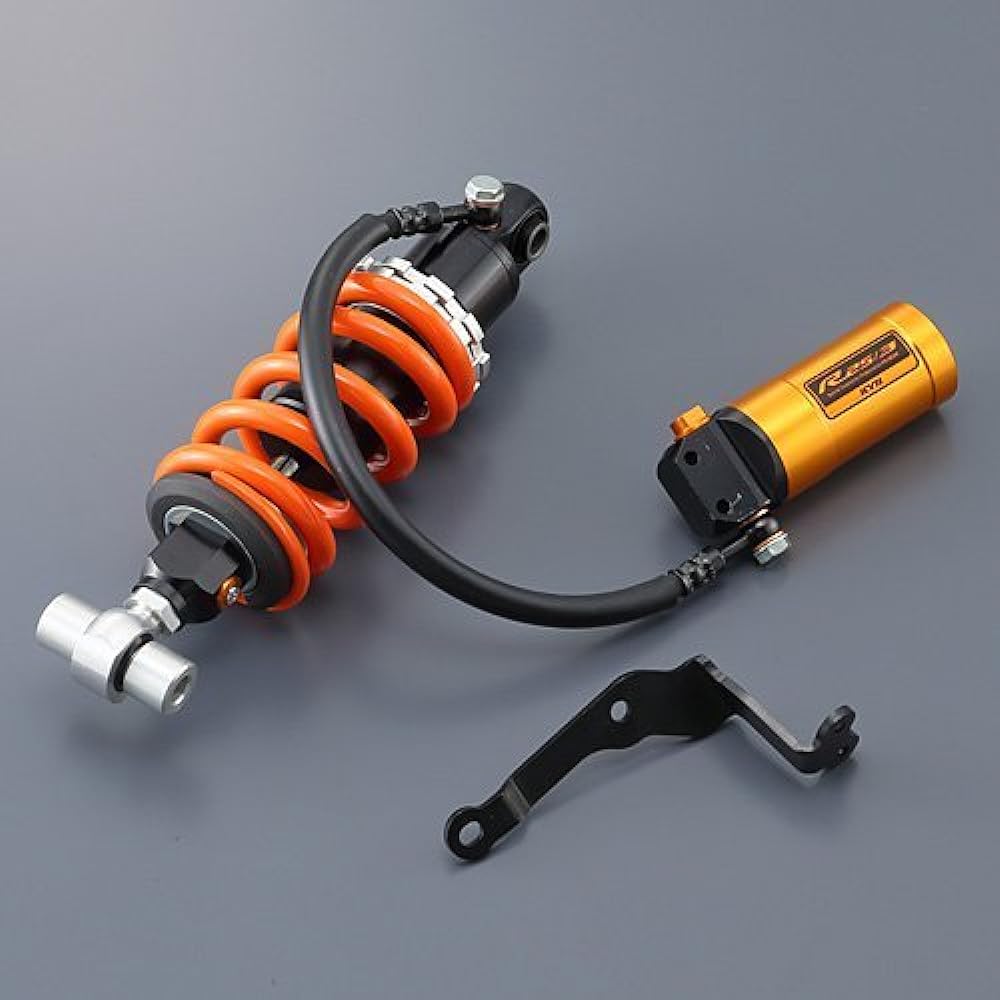

Yamaha Y's Gear KYB Special Suspension Rear YZF-R25/R3/MT25/03 Q5K-YSK-084-F03
Yamaha Y's Gear KYB Special Suspension Rear YZF-R25/R3/MT25/03 Q5K-YSK-084-F03
Regular price
$765.00 USD
Regular price
Sale price
$765.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Compatible models: YZF-R25/R3・MT25/03 Gold
[Aluminum body and pressurized separate oil tank] When the rear suspension temperature rises during hard driving, the viscosity of the oil decreases, and repeated expansion and contraction may cause the oil to bubble, making the damping force unstable. there is. The Wise Gear KYB special suspension (rear) uses an aluminum body to improve heat dissipation, and a separate tank increases the amount of oil and suppresses the rise in oil temperature, and by pressurizing the separate tank. Separating oil and air prevents suspension oil from foaming and provides stable damping force. [Fully adjustable with extension damping adjustment and screw type preload adjustment mechanism] Extension damping adjustment range 20 steps (12 steps at shipping) Adjustment location Lower body side pressure damping adjustment range 20 steps (12 steps at shipping) Adjustment location Sub tank Preload adjustment range Spring set length Strongest 123mm ~ Weakest 129mm (127mm at shipping) (Spring constant 160N/mm) Stepless screw adjustment type [High-precision ball joint used in the lower eye] Rear suspension mounting STD on the lower eye A high-precision ball joint is used for the rubber bush. The movement around the rear arm is transmitted more straight to the suspension unit, and the movement of the rear suspension is less likely to be hindered even when twisting occurs around the car body during hard driving.・Springs are powder coated in orange, which is the theme color of Wise Gear KYB. ・One Y's Gear KYB special suspension YZF-R25/R3 and MT25/03 sticker included. ・Tandem running. Recommended setting table according to cargo loading included • Can be used with MFJ JP250 Applicable vehicle models: YZF-R25/R3 MT25/03 Precautions for use *Please check the manufacturer's website for vehicle compatibility information. *Installation corresponds to disassembly and maintenance. We recommend installation by a certified or higher qualified factory.
Manufacturer: Yamaha Motors (Yamaha)
Brand: Yamaha Motors (Yamaha)
Model name: Q5K-YSK-084-F03
Package size: 41.4 x 27.8 x 13.6 cm; 3.58 kg
Product model number: Q5K-YSK-084-F03
Product weight: 3.58 Kilograms
[Aluminum body and pressurized separate oil tank] When the rear suspension temperature rises during hard driving, the viscosity of the oil decreases, and repeated expansion and contraction may cause the oil to bubble, making the damping force unstable. there is. The Wise Gear KYB special suspension (rear) uses an aluminum body to improve heat dissipation, and a separate tank increases the amount of oil and suppresses the rise in oil temperature, and by pressurizing the separate tank. Separating oil and air prevents suspension oil from foaming and provides stable damping force. [Fully adjustable with extension damping adjustment and screw type preload adjustment mechanism] Extension damping adjustment range 20 steps (12 steps at shipping) Adjustment location Lower body side pressure damping adjustment range 20 steps (12 steps at shipping) Adjustment location Sub tank Preload adjustment range Spring set length Strongest 123mm ~ Weakest 129mm (127mm at shipping) (Spring constant 160N/mm) Stepless screw adjustment type [High-precision ball joint used in the lower eye] Rear suspension mounting STD on the lower eye A high-precision ball joint is used for the rubber bush. The movement around the rear arm is transmitted more straight to the suspension unit, and the movement of the rear suspension is less likely to be hindered even when twisting occurs around the car body during hard driving.・Springs are powder coated in orange, which is the theme color of Wise Gear KYB. ・One Y's Gear KYB special suspension YZF-R25/R3 and MT25/03 sticker included. ・Tandem running. Recommended setting table according to cargo loading included • Can be used with MFJ JP250 Applicable vehicle models: YZF-R25/R3 MT25/03 Precautions for use *Please check the manufacturer's website for vehicle compatibility information. *Installation corresponds to disassembly and maintenance. We recommend installation by a certified or higher qualified factory.
Manufacturer: Yamaha Motors (Yamaha)
Brand: Yamaha Motors (Yamaha)
Model name: Q5K-YSK-084-F03
Package size: 41.4 x 27.8 x 13.6 cm; 3.58 kg
Product model number: Q5K-YSK-084-F03
Product weight: 3.58 Kilograms
