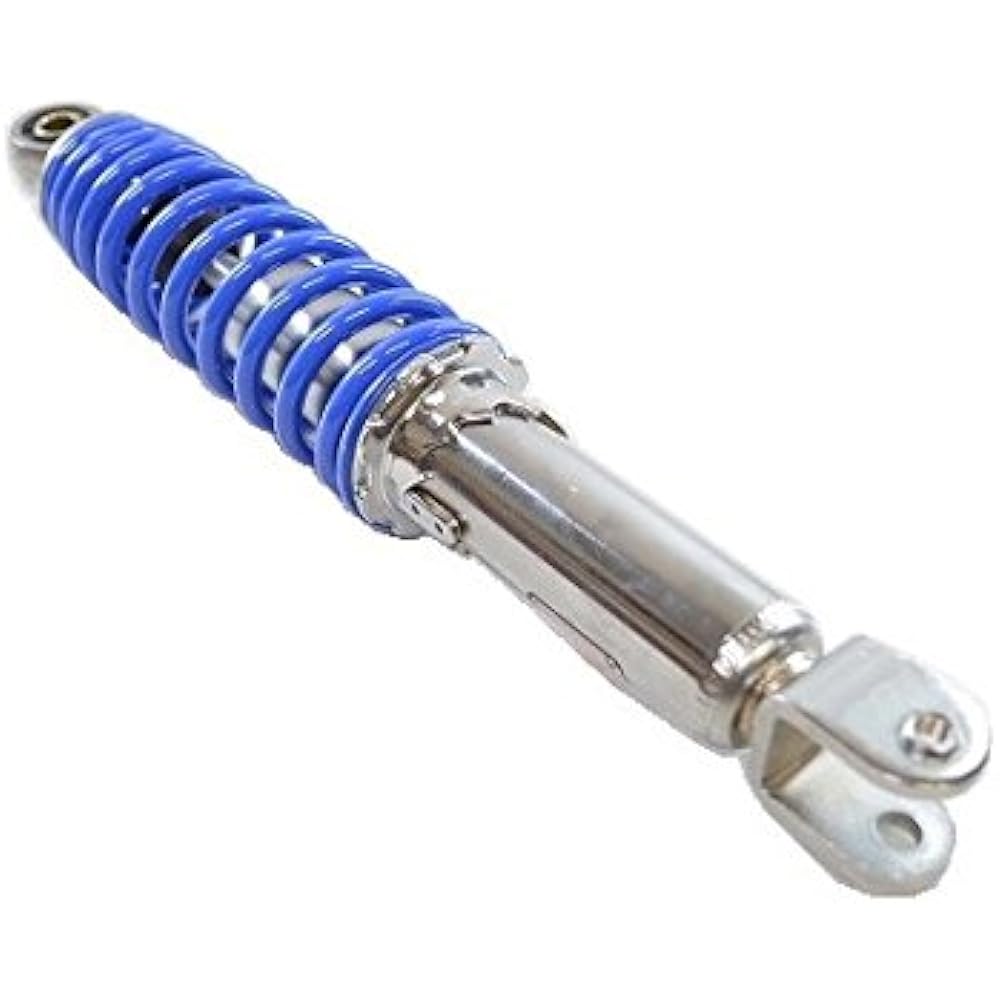

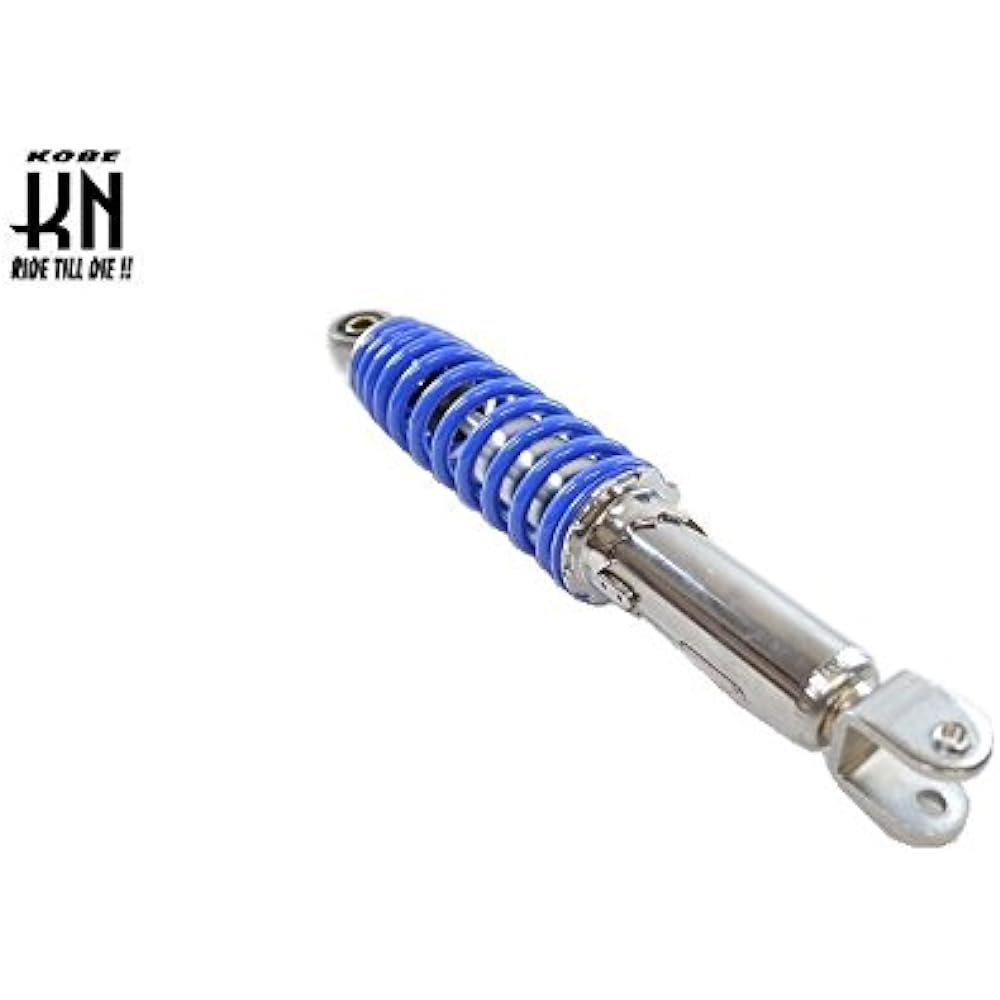

KN Planning Live Dio Live DIO Rear Shock Rear Shock Rear Suspension Rear Suspension Rear Cushion Rear Cushion General Purpose Shock Absorber 310mm Plated/Blue

[Compatible models] ■HONDA scooter ■YAMAHA scooter ■SUZUKI scooter [Summary] ■5-stage adjustment type ■Depending on the car model, the mounting width for lower mounting (crankcase side) is narrow, so please adjust with the included washer. ■There is no adjustment wrench. Please purchase TOOL-16 separately ■Color included for mounting on SUZUKI vehicles [Size] ■Bolt spacing 310mm ■Overall width: 50mm [Spring part] ■Thickness of bush side mounting part: 20mm ■Inner diameter of collar inside bush: 10mm ■ Spacing between the U-shaped parts on the opposite side of the bush: 20.5 mm [Inner dimensions] ■ Inner diameter of the mounting bolt holes on the U-shaped parts: M8 (same as the mirror's positive screw) [Color] ■ Body (plated) ■Spring (blue) [Caution] Depending on the car model, the length may be difficult or it may not be possible to install. Please think carefully before ordering. It cannot be used for monosuspensions such as NSR or canopy. Limited to vehicles with genuine shoulder suspension. [Recommended car model] ■This size is the STD size of the Live Dio type and is the length recommended by him.


Manufacturer: ‎KN Kikaku
Brand: ‎KN-KIKAKU
Packing size: ‎36.2 x 8.4 x 8.4 cm; 1.33 kg
Manufacturer reference: ‎SU03-3< br>Discontinued by the manufacturer: ‎No
Position: ‎Back
Item weight: ‎1.33 Kilograms
