KENWOOD Drive Recorder DRV-N530 Saisoku Navi Linkage Front Use KENWOOD
KENWOOD Drive Recorder DRV-N530 Saisoku Navi Linkage Front Use KENWOOD
Regular price
$162.00 USD
Regular price
Sale price
$162.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Works with Saisoku Navi 2017 and later models.Double recording and synchronized playback are possible by combining the front and rear drive recorders.DRV-N530 compatible models:MDV-M805L/M705W/M705/Z904W/Z904/ Z704W/Z704/L504W/L504/L404W/L404/D504BTW/D504BT/D404BTW/D404BT/D304W/D304 *Please see the JVC Kenwood homepage for details. *For details, please see the JVC Kenwood homepage.

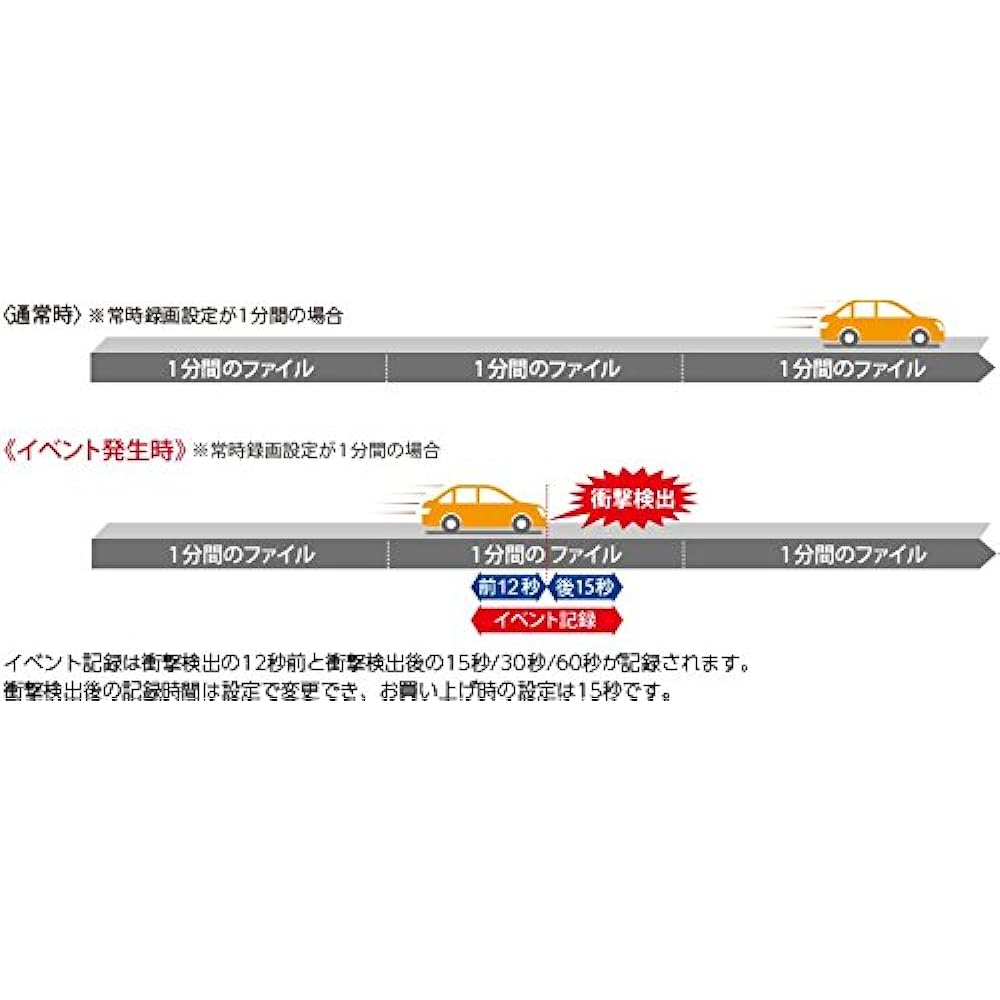

■Product number: DRV-N530 ■Power supply voltage: DC14.4V (8.5~16V car) ■Current consumption: 200mA (maximum 400mA) ■GPS: Share GPS information of car navigation ■G sensor: ○■Shock detection sensitivity: -4.0 G~+4.0G (in 0.1G increments) ■Maximum recording angle of view (approx.): Horizontal: 117°, Vertical: 63°, Diagonal: 128° ■F value: F2.0 ■Total number of pixels of image sensor: 1/ 3 type 4 million pixel CMOS ■ Operating temperature range: -10℃~+60℃ ■ Terrestrial digital noise countermeasures: ○ ■ Recording resolution (maximum): 2304 x 1296 (video maximum approximately 2.98 million pixels) ■ Frame rate: 27fps ■ Recording method :Continuous recording/Manual recording/Event recording/Parking recording/Still image recording *1 ■Event recording: Front: 12 seconds, Back: 15/30/60 seconds *1 ■Continuous recording file: 1/3/5 minutes *1 ■Impact detection ■Audio recording: ○ (on/off possible) ■Video format: H.264 (linear PCM) ■Still image format: JPEG compliant (maximum 2304 x 1296) ■Image correction: HDR ■Recorded video playback method: Car navigation system , dedicated viewer software, Windows standard Windows Media Player, etc. ■Recording media: microSDHC card (Class 10 or higher 8GB to 32GB) ■SD card life notification function ■External dimensions: Main unit/when bracket is installed (approx. mm): W79 x H22/66 ×D48 ■ Mass (weight) (approx. g): 75 ■ microSD card (8 GB), connection cable (approx. 3.5 m), mounting bracket (double-sided tape: installed) *1: Setting time and still image shooting timing are Linked to the front drive recorder. *Mass (weight) does not include brackets and cables. *Lane departure warning also operates when changing lanes on roads with two or more lanes on each side. The speed is a guideline. *The driving support function supports the driver's driving and does not prevent accidents from occurring. Also, it does not report all dangers. When driving, please follow the traffic rules, pay attention to the distance between you and the vehicle in front of you, your surroundings, and the driving environment, and apply the brakes as necessary to drive safely. *If you are in a place where GPS signals cannot be received, such as in a tunnel, or if the vehicle or lane cannot be recognized correctly due to changes in the shape of the vehicle, paint color, lighting, weather (rain, snow, fog, etc.), time of day, or traffic conditions, etc. , the driving support functions may not work properly. *Driving recorders are exempt from the front glass installation regulations of Article 29 of the Road Transport Vehicle Law and Safety Standards. *Video may not be recorded if this unit is damaged due to a major accident. *The recorded video is used to assist in accident verification. It is not guaranteed to be effective as evidence of an accident. *Drivers should not stare at or operate the LCD screen while driving. *The displayed image is a hamekomi composite. Also, the color of the product may differ from the actual product.
Manufacturer: KENWOOD Brand: KENWOOD Model name: DRV-N530 Product size: 4.8 x 7.9 x 6.6 cm; 410 g
Product model number: DRV-N530
Discontinued by manufacturer: No
Special notes: G sensor
Product dimensions: Depth x Width x Height: 48 x 79 x 66 mm
Resolution: 2304×1296
Installation size: 79mm×22mm×48mm
Color: Black
Certification: Subject to manufacturer's warranty
Product weight : 410 g
■Product number: DRV-N530 ■Power supply voltage: DC14.4V (8.5~16V car) ■Current consumption: 200mA (maximum 400mA) ■GPS: Share GPS information of car navigation ■G sensor: ○■Shock detection sensitivity: -4.0 G~+4.0G (in 0.1G increments) ■Maximum recording angle of view (approx.): Horizontal: 117°, Vertical: 63°, Diagonal: 128° ■F value: F2.0 ■Total number of pixels of image sensor: 1/ 3 type 4 million pixel CMOS ■ Operating temperature range: -10℃~+60℃ ■ Terrestrial digital noise countermeasures: ○ ■ Recording resolution (maximum): 2304 x 1296 (video maximum approximately 2.98 million pixels) ■ Frame rate: 27fps ■ Recording method :Continuous recording/Manual recording/Event recording/Parking recording/Still image recording *1 ■Event recording: Front: 12 seconds, Back: 15/30/60 seconds *1 ■Continuous recording file: 1/3/5 minutes *1 ■Impact detection ■Audio recording: ○ (on/off possible) ■Video format: H.264 (linear PCM) ■Still image format: JPEG compliant (maximum 2304 x 1296) ■Image correction: HDR ■Recorded video playback method: Car navigation system , dedicated viewer software, Windows standard Windows Media Player, etc. ■Recording media: microSDHC card (Class 10 or higher 8GB to 32GB) ■SD card life notification function ■External dimensions: Main unit/when bracket is installed (approx. mm): W79 x H22/66 ×D48 ■ Mass (weight) (approx. g): 75 ■ microSD card (8 GB), connection cable (approx. 3.5 m), mounting bracket (double-sided tape: installed) *1: Setting time and still image shooting timing are Linked to the front drive recorder. *Mass (weight) does not include brackets and cables. *Lane departure warning also operates when changing lanes on roads with two or more lanes on each side. The speed is a guideline. *The driving support function supports the driver's driving and does not prevent accidents from occurring. Also, it does not report all dangers. When driving, please follow the traffic rules, pay attention to the distance between you and the vehicle in front of you, your surroundings, and the driving environment, and apply the brakes as necessary to drive safely. *If you are in a place where GPS signals cannot be received, such as in a tunnel, or if the vehicle or lane cannot be recognized correctly due to changes in the shape of the vehicle, paint color, lighting, weather (rain, snow, fog, etc.), time of day, or traffic conditions, etc. , the driving support functions may not work properly. *Driving recorders are exempt from the front glass installation regulations of Article 29 of the Road Transport Vehicle Law and Safety Standards. *Video may not be recorded if this unit is damaged due to a major accident. *The recorded video is used to assist in accident verification. It is not guaranteed to be effective as evidence of an accident. *Drivers should not stare at or operate the LCD screen while driving. *The displayed image is a hamekomi composite. Also, the color of the product may differ from the actual product.
Manufacturer: KENWOOD Brand: KENWOOD Model name: DRV-N530 Product size: 4.8 x 7.9 x 6.6 cm; 410 g
Product model number: DRV-N530
Discontinued by manufacturer: No
Special notes: G sensor
Product dimensions: Depth x Width x Height: 48 x 79 x 66 mm
Resolution: 2304×1296
Installation size: 79mm×22mm×48mm
Color: Black
Certification: Subject to manufacturer's warranty
Product weight : 410 g
