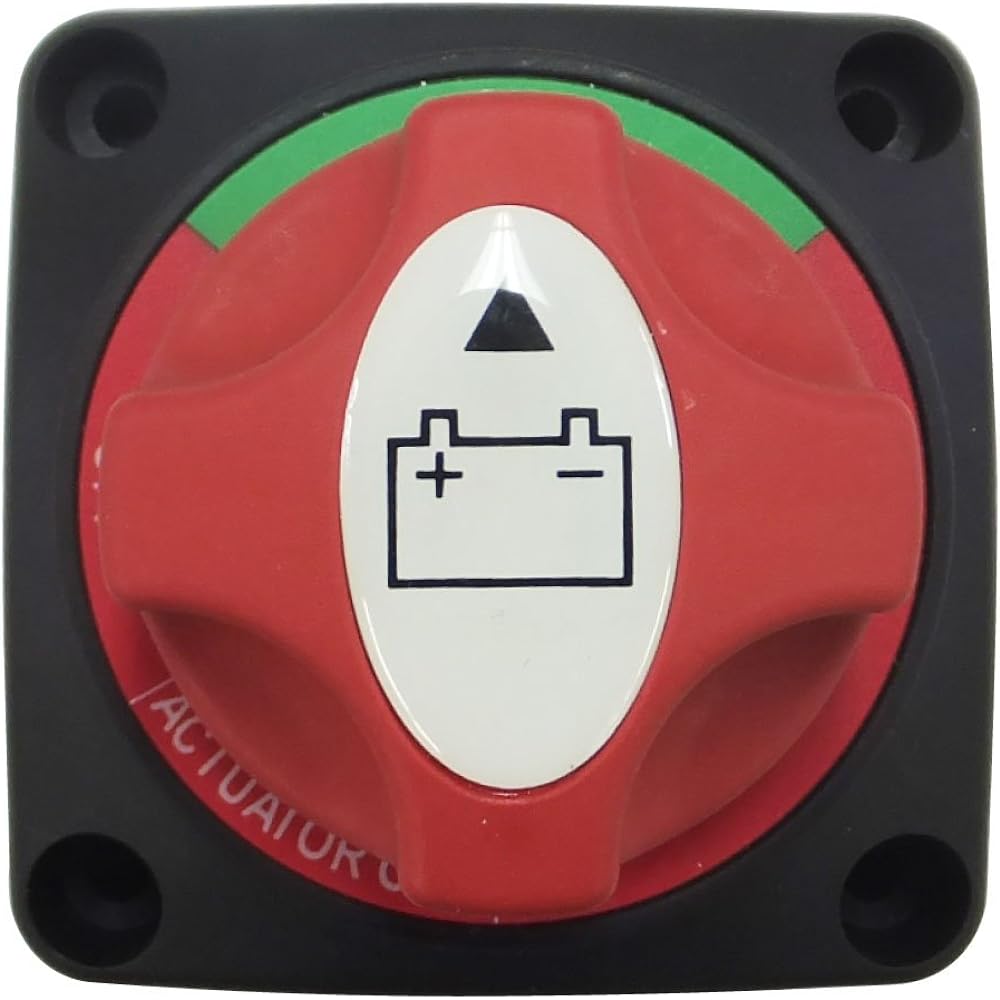

Battery selection switch 2 positions (200A) A23-2

[Features] - Can switch between 1 system (pieces) of battery systems. - Since the bottom has a lid, there is no need to worry about it coming into direct contact with anything underneath. - There are holes for cables to pass through in four directions on the side, and unused holes can be covered with the included lid. -Knob switches enter and hold each position securely.・The knob, housing, and cover are made of PET resin. (UL Heat Resistant 94V-O) - The knob can be removed if matched with ACTUATOR OUT, so if installed between the battery, engine, and electrical components, it can prevent electrical leakage, prevent misoperation caused by children's mischief, and prevent theft. , I feel safe. *Please do not use this product for any purpose other than battery switching. It is not covered by the warranty. [Specifications] Model number: A23-2 Continuous operating current/voltage: 200A / 12~50VDC Cranking current: 1000A (10 seconds) Contact resistance: Max. 50MΩ Insulation resistance: DC 1000V / 100MΩ Instantaneous withstand voltage: DC 2000V (1 minute) / AC 1000V (1 minute) Operating environment temperature: -20~80℃ Mounting screw pitch (cm): 5.2 Terminal terminal (mm): 10 Size (mm): 69 (W) x 69 (L) x 75 (H)

Japanese instruction manual and warranty included Warranty: 6 months


Manufacturer: ONE GAIN Brand: ONE GAIN Model name: A23-2
Package size: ‎27 x 18.9 x 8.9 cm; 230 g
Product model number: ‎A23-2
Product weight: ‎230 g
