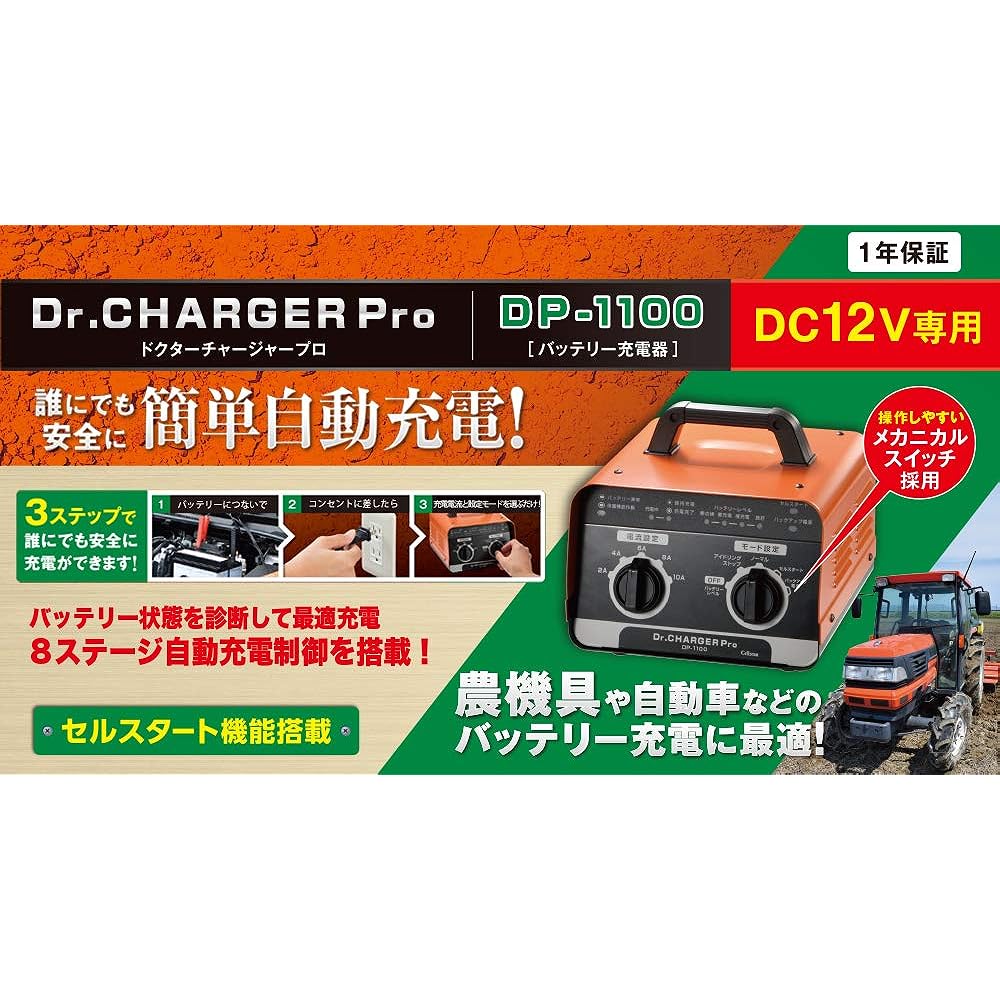

CELLSTAR Dr.CHARGER Pro Battery Charger DP-1100 CELLSTAR

8-stage automatic charging control (① Soft start ② Pulse charge ③ Bulk charge ④ Absorption charge ⑤ After charge ⑥ Testing ⑦ Float charge ⑧ Cycle charge) Cell start function (Cell start maximum current: 35A) Backup power function Battery Checker function Full charge notification alarm DC12V only

Safe and easy automatic charging for anyone! Safe charging in 3 steps 1. Connect the battery 2. Plug it into an outlet 3. Select charging current and setting mode 8-stage automatic charging control eliminates troublesome charging settings to supplementary charging All automatic 1 Soft start First diagnoses if the battery can accept a charge, and if it is, starts charging gradually at a lower current 2 Pulse charging Automatically if the battery voltage is too low Improves the sulfation phenomenon. Pulse charging removes lead sulfate crystals attached to the electrode plates and expands the electrical reaction area.3 Bulk charging (constant current) Charges the battery to 80% at the set maximum current in one go to avoid putting stress on the battery.4 Absorption charging (constant voltage) While controlling the current, slowly and firmly charge the battery from 95% to full charge using a constant voltage.5 After charging Apply a higher voltage to equalize the electrolyte in the battery to improve the condition of a weakened battery. 6 Testing Analyzes whether the battery is holding a charge and determines whether the battery is good or bad. 7 Float charging After displaying full charge, monitor the battery voltage and perform supplementary charging if the voltage drops. 8 Cycles Charging Recharge the battery every 15 days


Manufacturer: ‎CELLSTAR
Brand: ‎CELLSTAR
Model name: ‎Dr.CHARGER Pro( Doctor Charger Pro)
Product size: 21 x 20.9 x 18.5 cm; 2.75 kg
Product model number: DP-1100
Special notes: Applicable battery voltage: DC12V, Output voltage: In normal mode (DC14.4V), idling stop mode (DC15.9V), Cell start maximum current: 35A, Applicable battery capacity: 15 to 150Ah, Input voltage: AC100V, 50Hz/60Hz, Rated current 5A, Cord length (power supply, clip) ): 1.8m, Battery type: Idling stop vehicle battery/open type battery/shielded battery/V.R.L.A battery, etc., Operating temperature range: Max. +40℃, Output current (maximum): 2A/4A/6A/8A/10A , Backup power supply: Rated output voltage 13.5V, output current (maximum) 10A
Product dimensions Depth x Width x Height: 21 x 20.9 x 18.5 cm
Color: Orange, Black
Certification: ‎1 year
Product weight: ‎2.75 Kilograms
