PARTSAM 4 6 -inch overler trailer tail light kit 10 LED flange mount waterproof 12V sealed RV track LED stop brake turn Reverse backup trailer Light surface implementation (red 2+2 white)

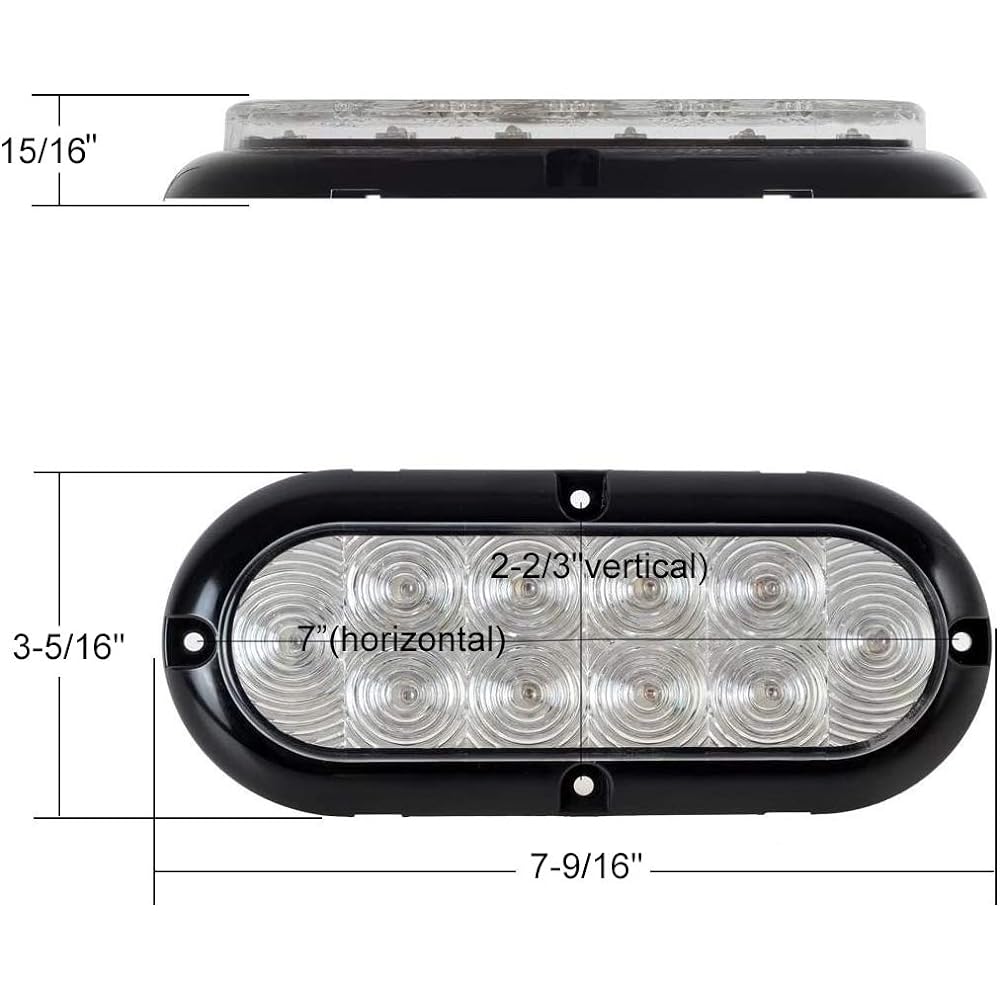

Package includes: 4 x 6 inch oval LED trailer lights 10 x LEDs (2 red + 2 white). Comes with 4 mounting screws. You can also DIY it as a headache rack light. These oval LED lights need to be connected to a 12V power supply and contain 10 LEDs each. LEDs are brighter, light faster, draw less current, and generate less heat than incandescent lights. Completely sealed The wiring coming out from the back is also sealed. However, please do not use it underwater. Water enters and the circuit is destroyed in the light. INSTALLATION: This 6 inch oval light is wired with 3 wires: White is ground, Red is brake/turn, Black is tail/running light (red is backup/reverse, black is marker for white light) /Running Light); Surface mount with 4 holes for fixing, there is no room to connect under the light, so you need a hole to pass the wire through. With silicone sealer, the connections are on the inside, so water won't get into the wire holes. Dimensions: 7-9/16" x 3-5/16" x 15/16", horizontal hole distance is 7", vertical hole distance is 2-2/3". These 12V DC oval trailer lights are versatile for trucks, trailers, tractors, semi-trailers, horse trailers, travel trailers, and dumps. The size fits anywhere you like, such as ucks, special vehicles, etc. Tips and Warranty: 1. This oval light is either powered on or powered off. 2. Depending on the wire you use, the light will be on or off, the brightest, or not so bright. No resistor required. 3. Tail lights can be used unless two are needed on the topper. Because one or the other cannot be used for braking.

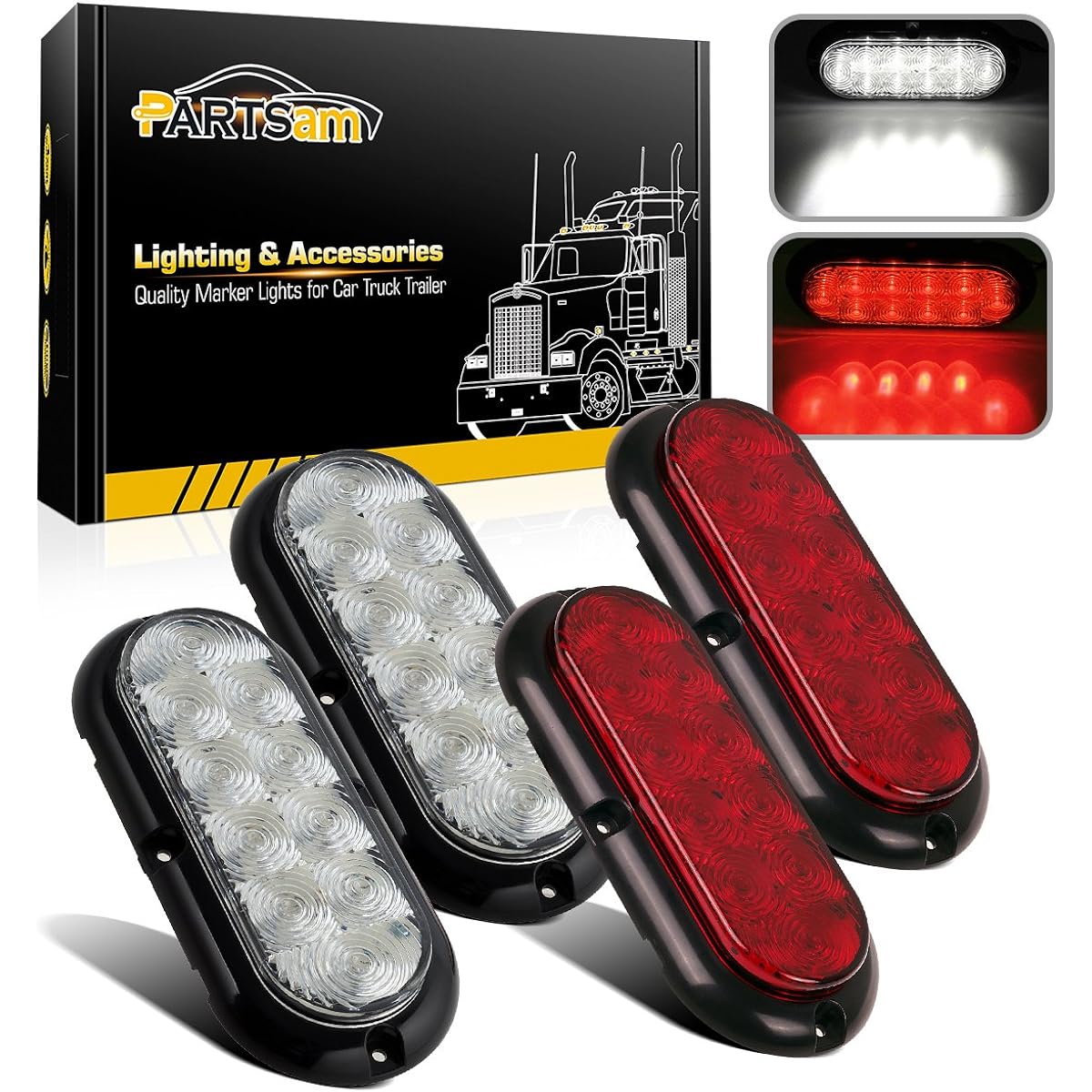

Applications: Trucks, trailers, tractors, semi-trailers, horse trailers, travel horse trailers, dump trucks, special vehicles, etc. Features: Waterproof. 10 diode LED oval lights with 4 screw holes for mounting. 3 wires for ground, brake/turntail, and reverse backup light functions. Replace your old incandescent lights with more modern LEDs. LEDs are brighter, light faster, draw less current, and generate less heat than incandescent lights. Voltage: 12V. Flange Mount External Mount Dimensions: 191mm x 85mm x 24mm (7.52" x 3.45" x 0.94"). Light dimensions: 164mm x 56mm x 11mm (6.46" x 2.2" x 0.43") Long hole distance: 180mm (7.09"), short hole distance: 68mm (2.68"). Wiring connection tips: White wire is ground. Red wire is high brightness. Black wire is low brightness. Package Contents: 2 x White 6 Inch Oval 10 LED 4 Screw Backup Reverse Fog Lights. 2 x Red 6 Inch Oval 10 LED 4 Screw Stop/Turn/Tail Lights.


Manufacturer: ‎Partsam
Brand: ‎Partsam
Model Name: ‎6" Oval Red Stop Turn Tail Brake Light Backup Reverse Fog Assembly
Packing Size: ‎29.31 x 11.4 x 8.89 cm; 458.13 g
Item Model Number: ‎133794
Discontinued by Manufacturer: ‎No
Position: ‎Medium
Special Notes: ‎1 Year Warranty, Kenworth Peterbilt Freightliner For heavy duty trucks such as Western Star International Mack Paccar and other truck lights. , Compatible with trucks, trailers, tractors, semi-trailers, dump trucks, buses, boats, special vehicles, etc.
Color: ‎2 red + 2 white.
Guarantee: ‎DOT Certified
Product weight: ‎458 g
